Patagium and tail morphology shape aerodynamic performance and control authority in gliding-mammal-inspired wings

Liming Zheng , Baihui Chen , Alexander van Zuijlen , Salua Hamaza This is my paper

Pith reviewed 2026-07-03 04:54 UTC · model grok-4.3

classification ⚛️ physics.flu-dyn physics.bio-ph
keywords gliding mammalspatagium morphologytail controlaerodynamic performancecomputational fluid dynamicsbioinspired aerial robotsmorphing wingscontrol authority
0
0 comments X

The pith

Gliding-mammal-inspired wing morphologies create distinct aerodynamic trade-offs in lift, drag, and control authority.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper compares three patagium outlines and three tail configurations inspired by gliding mammals using computational fluid dynamics under controlled flow. It measures how each shape affects lift generation, drag, stall behavior, and the pitching, rolling, and yawing moments produced by symmetric or asymmetric tail deflections. The results show that broader patagia produce more lift while intermediate shapes reduce post-stall drag, and that integrated uropatagia improve pitch control whereas flat tails strengthen roll and yaw responses. A sympathetic reader would care because the work demonstrates that natural gliding forms reflect functional diversity rather than convergence on one optimum, and supplies concrete guidance for choosing shapes in morphing aerial robots.

Core claim

Computational fluid dynamics simulations of three patagium configurations showed that a broader outline produced the highest lift and lift coefficient while an intermediate morphology provided a smoother post-stall response with lower drag. For tail configurations, the integrated uropatagium improved lift and pitch control under symmetric deflection, whereas the flat tail generated stronger rolling and yawing responses under asymmetric deflection. These results establish that gliding-mammal-inspired morphologies produce distinct aerodynamic trade-offs rather than a single optimal design.

What carries the argument

CFD comparisons that isolate patagium membrane outline and tail/uropatagium geometry under baseline, symmetric-deflection, and asymmetric-deflection conditions to quantify forces and moments.

If this is right

  • A broader patagium outline maximizes lift and lift coefficient.
  • An intermediate patagium outline reduces drag and smooths post-stall behavior.
  • A colugo-like integrated uropatagium increases lift and pitch-control authority under symmetric deflection.
  • A flat-tail configuration produces stronger rolling and yawing responses under asymmetric deflection.
  • No single morphology optimizes all aerodynamic and control metrics simultaneously.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The observed trade-offs may explain why different gliding mammal species evolved distinct patagium and tail shapes suited to their typical environments or behaviors.
  • Morphing aerial robots could switch between patagium and tail shapes mid-flight to prioritize lift during climb versus lateral control during turns.
  • Free-flight wind-tunnel or outdoor tests of the same shapes would reveal whether the fixed-condition CFD results hold when the wing is allowed to move and respond to its own wake.
  • Similar morphology-performance mapping could be applied to other gliding animals such as flying squirrels to test whether the same trade-off patterns appear.

Load-bearing premise

The chosen representative morphologies and controlled CFD flow conditions are representative enough of real gliding mammal flight to isolate the separate effects of patagium and tail on performance and control.

What would settle it

Force and moment measurements on physical gliding-mammal models or live animals executing comparable maneuvers that show different relative lift coefficients, drag values, or control moments than the CFD results.

Figures

Figures reproduced from arXiv: 2607.02246 by Alexander van Zuijlen, Baihui Chen, Liming Zheng, Salua Hamaza.

Figure 1
Figure 1. Figure 1: Representative gliding mammals illustrating the diversity of patagium morphology. [PITH_FULL_IMAGE:figures/full_fig_p002_1.png] view at source ↗
Figure 2
Figure 2. Figure 2: Morphological diversity of tail length among gliding mammals. Tail length (TL) is [PITH_FULL_IMAGE:figures/full_fig_p004_2.png] view at source ↗
Figure 3
Figure 3. Figure 3: Computational setup and aerodynamic definitions used in the CFD simulations. (A) [PITH_FULL_IMAGE:figures/full_fig_p005_3.png] view at source ↗
Figure 4
Figure 4. Figure 4: Influence of patagium morphology on aerodynamic performance. (A) Three gliding [PITH_FULL_IMAGE:figures/full_fig_p007_4.png] view at source ↗
Figure 5
Figure 5. Figure 5: Surface static pressure and flow-field distributions around the three patagium config [PITH_FULL_IMAGE:figures/full_fig_p008_5.png] view at source ↗

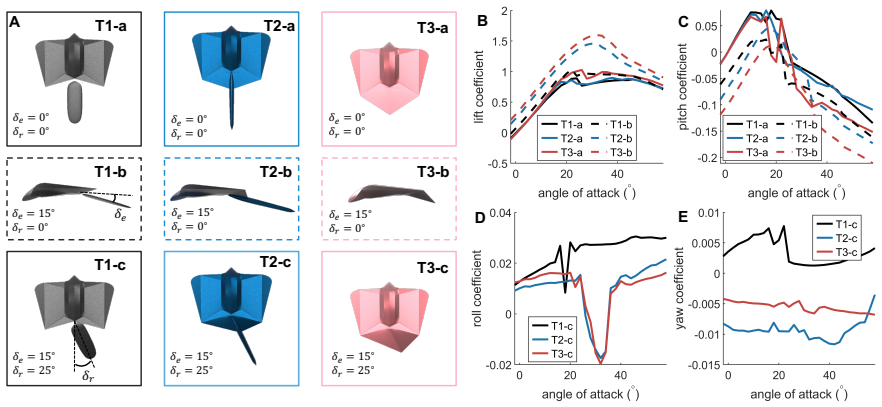

Figure 6
Figure 6. Figure 6: Influence of tail and uropatagium morphology on aerodynamic force and moment coef [PITH_FULL_IMAGE:figures/full_fig_p009_6.png] view at source ↗
read the original abstract

Gliding mammals exhibit diverse patagium and tail/uropatagium morphologies that may influence aerodynamic performance and maneuverability. Here, we use computational fluid dynamics to isolate the aerodynamic effects of representative gliding-mammal-inspired morphologies under controlled flow conditions. Three patagium configurations were compared to evaluate the effects of membrane outline on lift generation, drag, stall behavior and pitching moment. Three tail/uropatagium configurations were further tested under baseline, symmetric-deflection and asymmetric-deflection conditions to assess their longitudinal and lateral control authority. The results show that a broader patagium configuration generated the highest lift and lift coefficient, whereas an intermediate patagium morphology showed a smoother post-stall response with lower drag. For the tail configurations, the colugo-like integrated uropatagium enhanced lift and pitch-control authority under symmetric deflection, while the flat-tail configuration produced stronger rolling and yawing responses under asymmetric deflection. These findings indicate that gliding-mammal-inspired morphologies produce distinct aerodynamic trade-offs rather than a single optimal design. The results provide insight into the functional diversity of gliding mammal morphology and offer design guidance for bioinspired morphing aerial robots.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

1 major / 1 minor

Summary. The manuscript uses computational fluid dynamics to isolate the effects of three representative patagium outlines and three tail/uropatagium shapes on lift, drag, stall behavior, and pitching/rolling/yawing moments under controlled flow conditions. It reports that a broader patagium produces the highest lift coefficient, an intermediate patagium yields smoother post-stall response with lower drag, a colugo-like integrated uropatagium enhances lift and pitch-control authority under symmetric deflection, and a flat-tail configuration produces stronger rolling and yawing responses under asymmetric deflection. The central claim is that these morphologies generate distinct aerodynamic trade-offs rather than a single optimal design, providing insight into gliding-mammal functional diversity and guidance for bioinspired morphing aerial robots.

Significance. If the CFD results are reliable, the work supplies concrete, morphology-specific trade-offs (e.g., lift vs. post-stall smoothness, pitch vs. roll/yaw authority) that advance understanding of why gliding mammals exhibit diverse patagium and tail forms and that can directly inform parameter choices in morphing-wing robot design.

major comments (1)
  1. [Methods] Methods section (and abstract): no Reynolds-number values, turbulence-model specification, mesh-convergence data, or validation against experiments, wind-tunnel benchmarks, or animal flight data are supplied. This is load-bearing because the reported differences in lift coefficients, stall behavior, and control moments rest entirely on the fidelity of the simulated flow fields under the chosen conditions.
minor comments (1)
  1. [Abstract] Abstract: quantitative deltas (e.g., percentage lift increase or moment coefficient changes) between configurations would strengthen the comparative claims.

Simulated Author's Rebuttal

1 responses · 0 unresolved

We thank the referee for the constructive feedback. The single major comment identifies a clear gap in the methods documentation that we will address directly in revision.

read point-by-point responses

  1. Referee: [Methods] Methods section (and abstract): no Reynolds-number values, turbulence-model specification, mesh-convergence data, or validation against experiments, wind-tunnel benchmarks, or animal flight data are supplied. This is load-bearing because the reported differences in lift coefficients, stall behavior, and control moments rest entirely on the fidelity of the simulated flow fields under the chosen conditions.

    Authors: We agree that these details are essential for evaluating the CFD results. In the revised manuscript we will (i) state the Reynolds number(s) based on the reference length and freestream velocity used, (ii) specify the turbulence model and closure constants, (iii) present mesh-convergence data (force coefficients and moment coefficients versus cell count) demonstrating that the reported differences remain within acceptable tolerances, and (iv) add a validation subsection that compares the solver setup against published wind-tunnel data for comparable low-aspect-ratio wings and any available gliding-mammal kinematic or force measurements. We note that comprehensive live-animal validation data remain sparse in the literature; the revised text will therefore frame the validation as a combination of canonical benchmarks and sensitivity checks rather than direct animal replication. revision: yes

Circularity Check

0 steps flagged

No circularity: results are direct CFD outputs with no fitted predictions or self-referential derivations

full rationale

The paper conducts CFD simulations comparing three patagium outlines and three tail/uropatagium shapes under controlled conditions, reporting lift, drag, stall behavior, and control moments as direct simulation outputs. No equations, parameter fits, or self-citations are described that would reduce reported coefficients to inputs by construction. The central claim of distinct aerodynamic trade-offs follows from comparative simulation results rather than any definitional or fitted equivalence. This is a standard numerical-experiment paper whose load-bearing steps are external to the reported values.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

Abstract-only review; no explicit free parameters, invented entities, or non-standard axioms are stated. Standard CFD modeling assumptions are implicit but not detailed.

axioms (1)
  • domain assumption CFD simulations with the chosen turbulence model and boundary conditions accurately capture the aerodynamic forces and moments on the tested morphologies
    Invoked by the decision to use CFD to isolate effects under controlled flow conditions
